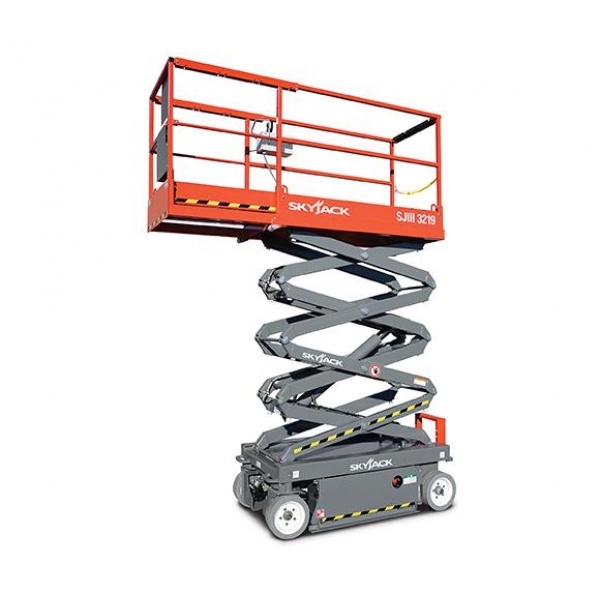

Lift, Scissor 25′

Skyjack SJIII 3219

Working Height 25’
Raised Platform Height 19’
Lowered Platform Height 39”
Overall Width 32”
Overall Length 70”
Stowed Height (Rails Up) 78.5”
Platform Width (Inside Dimension) 26”
Platform Length (Inside Dimension) 64″
Extension Deck (Roll Out) 3’
Wheelbase 55”
Ground Clearance (Stowed) 2.375”
Ground Clearance (raised) 0.7”
Weight 2,580 lbs
Gradeability 30%
Turning Radius (Inside) 0”
Turning Radius – Outside 66”
Lift Time (With Rated Load) 25 sec
Drive Speed (Stowed) 2 mph
Drive Speed (Raised) 0.7 mph
Maximum Drive Height Full Height
Capacity (Overall) 550 lbs
Maximum # of Persons 2


Lift, Scissor 25′

Skyjack SJIII 3219

Working Height 25’
Raised Platform Height 19’
Lowered Platform Height 39”
Overall Width 32”
Overall Length 70”
Stowed Height (Rails Up) 78.5”
Platform Width (Inside Dimension) 26”
Platform Length (Inside Dimension) 64″
Extension Deck (Roll Out) 3’
Wheelbase 55”
Ground Clearance (Stowed) 2.375”
Ground Clearance (raised) 0.7”
Weight 2,580 lbs
Gradeability 30%
Turning Radius (Inside) 0”
Turning Radius – Outside 66”
Lift Time (With Rated Load) 25 sec
Drive Speed (Stowed) 2 mph
Drive Speed (Raised) 0.7 mph
Maximum Drive Height Full Height
Capacity (Overall) 550 lbs
Maximum # of Persons 2


Rates

Three Hour Minimum Hour Day Week Month
$90.00 $30.00 $180.00 $360.00 $720.00

Available Locations

  • Algonquin
  • McHenry
